MB-ActiveTrap & Universal Trap

The odor trap with membrane technology improves safety and reliability in sanitary facilities.

  •  Contactless
  •  Visual change indicator (unique)
  •  Resistant to under and over-pressure
  •  Integrated cleaning stone
  •  Made of up to 50% recycled material

  • Patented step regulation

    The three-fold step regulation of the cover determines the length of effectiveness of the integrated MB-ActiveCube, thus enabling durability to be controlled.

  • Integrated MB-ActiveCube

     The integrated MB-ActiveCube improves hygiene and prevents residue, crusting due to organic matter, urine residue and grease on the inside of the odour trap, and in the drain pipe.

  • Visual display indicator (unique patent)

     After the MB-ActiveCube has been removed, the red contact area beneath the transparent cover indicates that the odour trap on the waterless urinal needs to be replaced.

  • Vertically closing membrane system

    The vertical membrane technology ensures absolute odour proofing. Under-pressure and over-pressure are compensated for by the membrane. No sewer gases can escape.

1 4

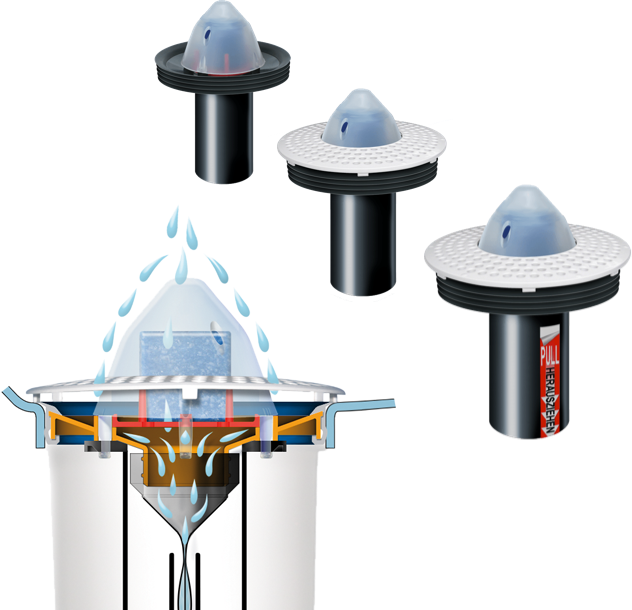

Functional description

Draining urine is fed through the funnel into the odour trap of the waterless urinal and then runs through the vertical membrane into the sewer system.

When there is no more urine flowing, the membrane closes and thus prevents any sewer odours from escaping.

DOCUMENTS

Odor trap for waterless urinals

Our technology has proven itself 100,000 times over. Use the efficient MB-ActiveTrap also in combination with urinals from other manufacturers. The odor trap with membrane technology brings more safety and reliability to the sanitary area.

The MB-ActiveTrap absorbs urine and directs it into the sewer system without flushing the drainage system and prevents odors from escaping, even under varying pressure conditions. The liquid is led directly into the sewer system via a vertically suspended membrane (membrane odour trap). Above the membrane is a microbiological cleaning cube, which reduces deposits and encrustations inside the odour trap, as well as in the drain pipe. As soon as no more urine passes through the membrane, it closes airtight. After the integrated cleaning cube has been removed, the red contact surface under the transparent cover indicates that the waterless urinal's odor trap needs to be replaced.

Another advantage is the longevity of the odor traps. They only need to be replaced after 7000-8000 uses. This helps to keep the costs and maintenance effort very low.
Changing the traps is also very easy. With the blue hand hook, the traps can be replaced with a flick of the wrist and without any touching.

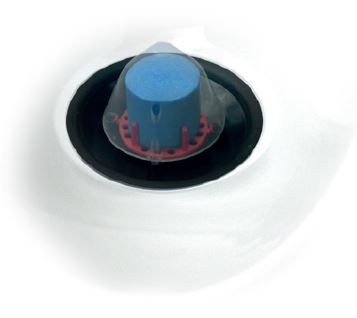

  • New MB-ActiveTrap with cleaning cube

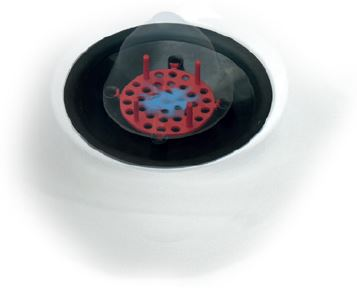

  • The cube of the MB-ActiveTrap is almost consumed and must be replaced soon
